China Supply Grinding Media Balls For Mining Promotions
- HY
- China
- 20-45 days
- 100000T
Our Grinding balls produced by advanced automatic rolling machine ( Balls from 20mm-70mm) + Labor Air Hammer ( 80mm-150mm) with special Heating treatment and strict quality control systerm , which make our grinding media balls high performance .
Grinding media balls 'Raw Material Purchase : Strategic partnership with standard steel enterprise and sign the long term agreement (50,000 Tons annually ) Purchase directly from Chinese famous standard steel enterprise , such as laigang Group, HBIS, ANSTEEL, XIWANG Special steel .
We have special department of QC teamwork .The QC department director have 10 years experience in this industry . The team is responsible for inspection during production , inspection before delivery . ( Grinding media balls Surface and core hardness test each day each batch and all will be recorded and filed in documents ) .
China Supply Grinding Media Balls For Mining,Grinding balls Promotions

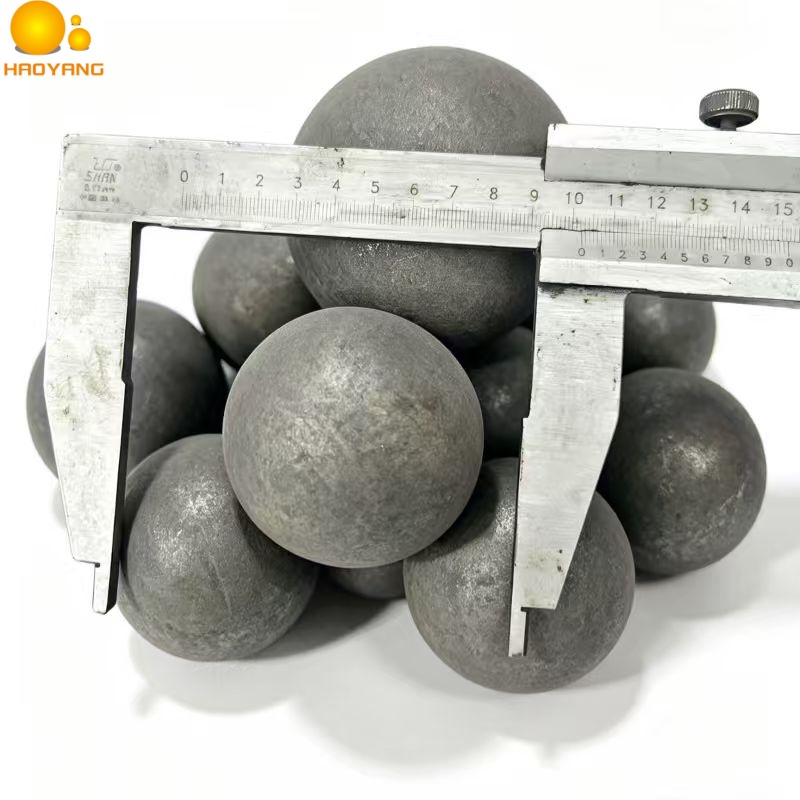

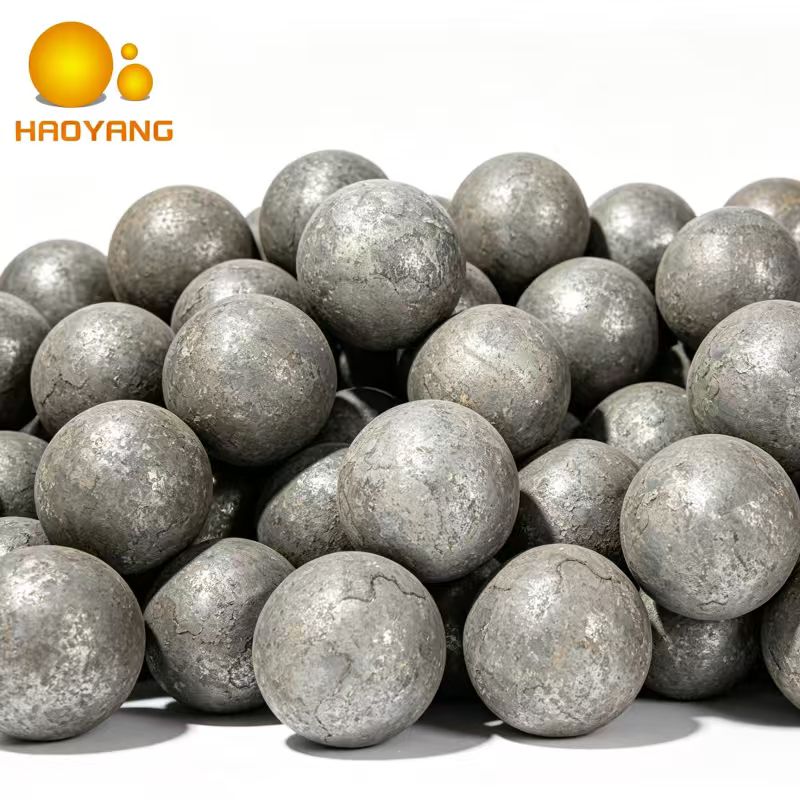

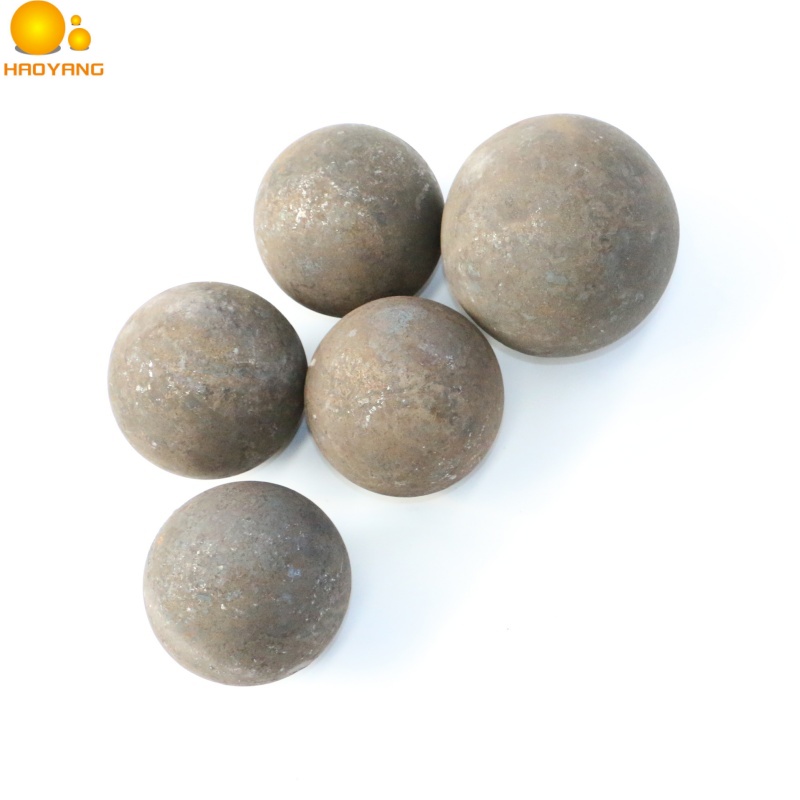

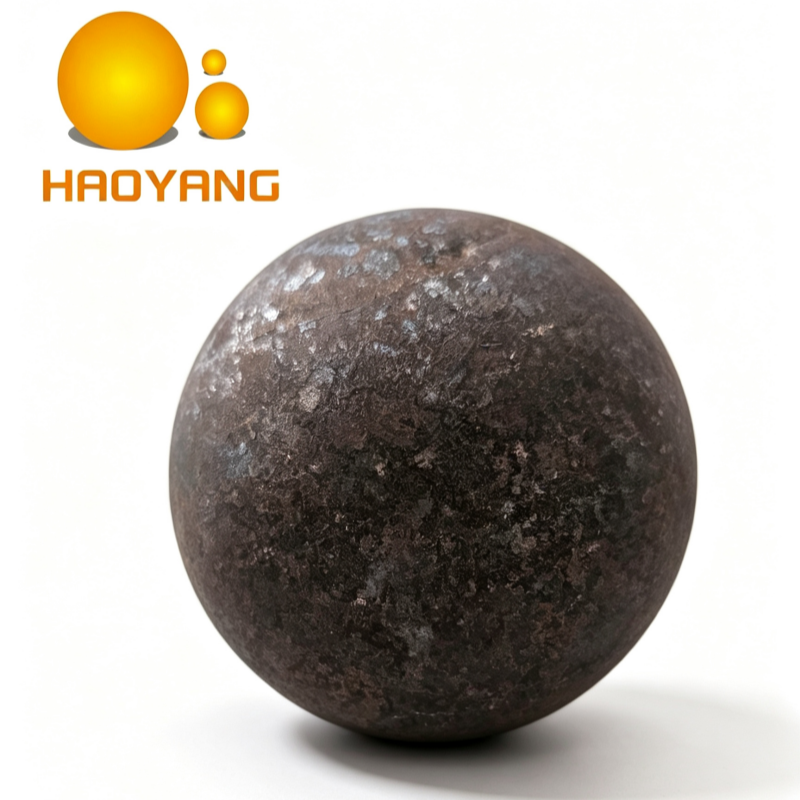

Grinding media balls for mining
The size of forged grinding media balls from 20mm to 150mm are widely used in all kinds of mills in the mining industry ( Copper Mining , Gold mining and iron mine )
Grinding Balls Features :
Steel : Low Carbon Steel , High Carbon and manganese Alloy steel , High Manganese Alloy Steel .
Consistant Surface hardness to Core Hardness ( 58-65HRC)
Grinding balls reach to the high Impact toughness more than 15J /cm2
The lowest broken rate : 125mm Grinding balls have reached to "0" broken rate ,all less than 0.5%
Improved wearing rates
Steel Chemical composition :
| Brand | Remarks | C | Mn | Cr | S | P | Si |
| HY-1 | 60Mn | 0.57-0.65 | 0.60-0.70 | ≤0.25 | 0.030max | 0.030max | 0.17-0.37 |
| HY-2 | B2 | 0.72-0.85 | 0.7-1.2 | 0.42-0.85 | 0.030max | 0.030max | 0.17-0.37 |
| HY-3 | B3 | 0.5-0.65 | 0.4-1.0 | 0.77-1.10 | 0.030max | 0.030max | 1.4-1.8 |
| HY-4 | B4 | 0.58-0.66 | 0.65-0.80 | 0.70-0.9 | 0.025max | 0.025max | 1.3-1.9 |
Grinding balls Packing : Steel drums with openable top (with threads). Two drums per pallet
Grinding media balls packing : Plastic bag with Pallets
Jinan Haoyang Casting & Forging Co.,ltd is one of leading grinding media balls manufacturer in China
Our products are disigned for grinding of raw materials by cement plants, energy generating companies, ore mining and industrial processing facilities, construction materials plants located in China. Haoyang grinding media balls manufacturing plant was put into operation since 2001. Today, we deal with continuously growing consumer requirements for operational properities of grinding media, what directly affects ball mill prices and quality ,efficiency of equipment and the enterprise in general.

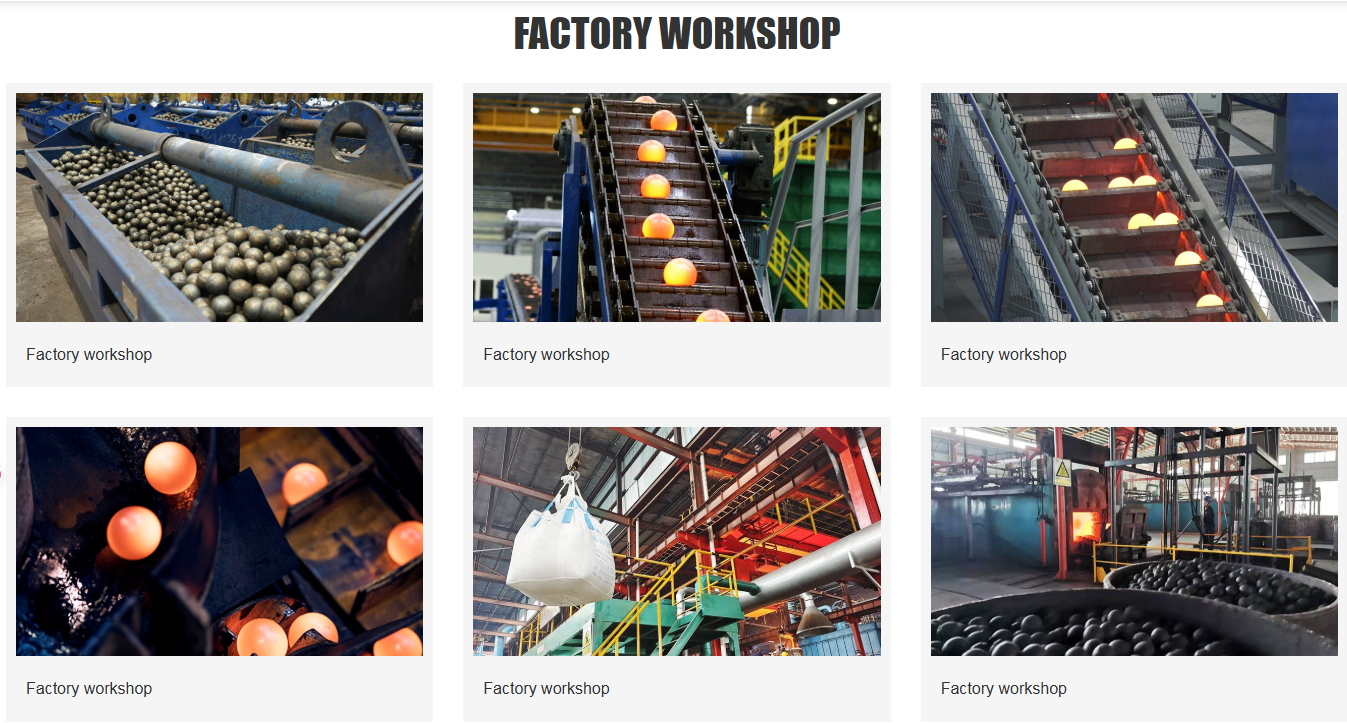

The plant was built using the most advanced hot rolled and forging equipment. Through the use of modern technologies and cooeration with a number of research organizaion,We managed to achieve very high levels of quality in grinding steel balls. Despite it short history, Haoyang managed to become a manufacturer of qualiy grinding steel balls for ball mill, as well as to keep it position on both the domestic and overseas markets. The operational properties of steel balls produced by haoyang allow to significantly reduce the consumption of grinding balls and power, to increase grinding finess of raw materials, to decrease the number of mill repairs and, consequently, to increase grinding fineness of raw materials, to decrease the number of mill repairs and, consequently, to increase their productivity .
